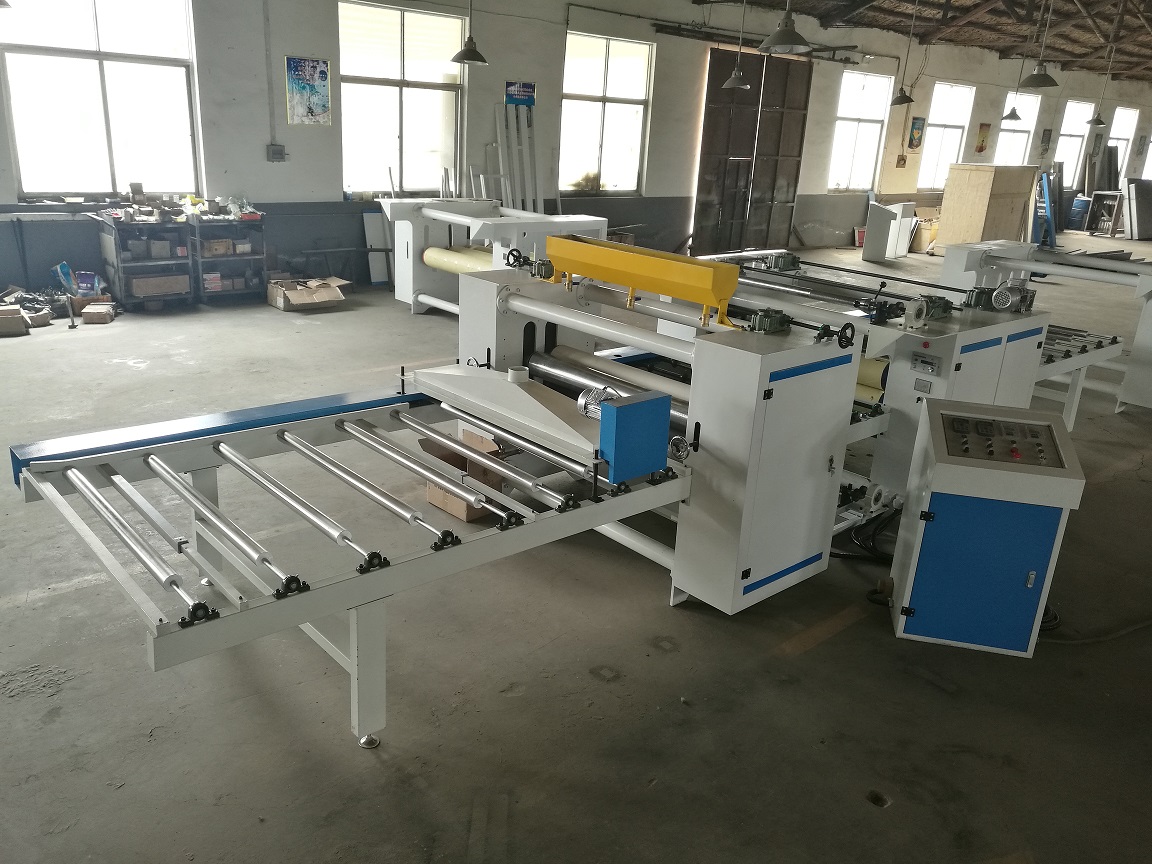

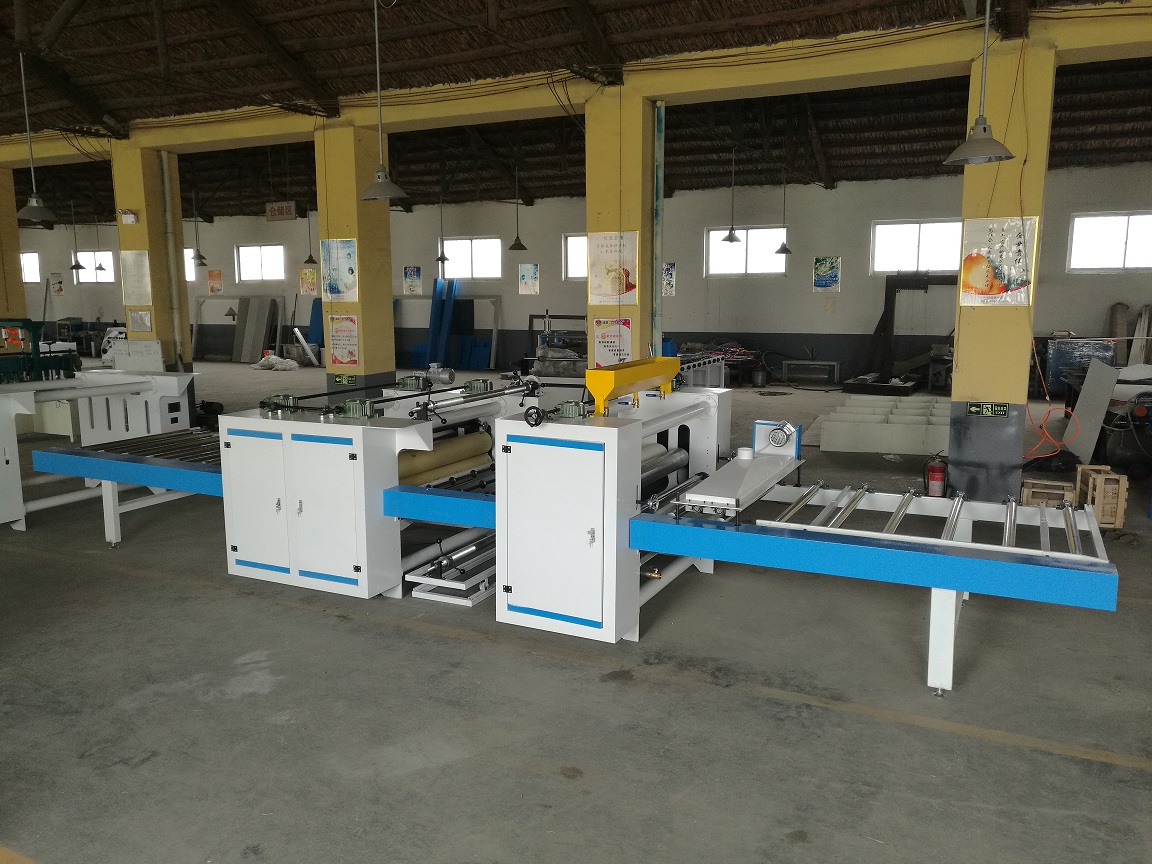

PVC/Paper Laminating Machine
Pressing roller control:air cylinder(when change thickness of the panel,need to adjust the air cylinder one by one)
Main body of the machine Made by 16mm steel plate
Voltage:380V/50HZ
Rated power:6KW

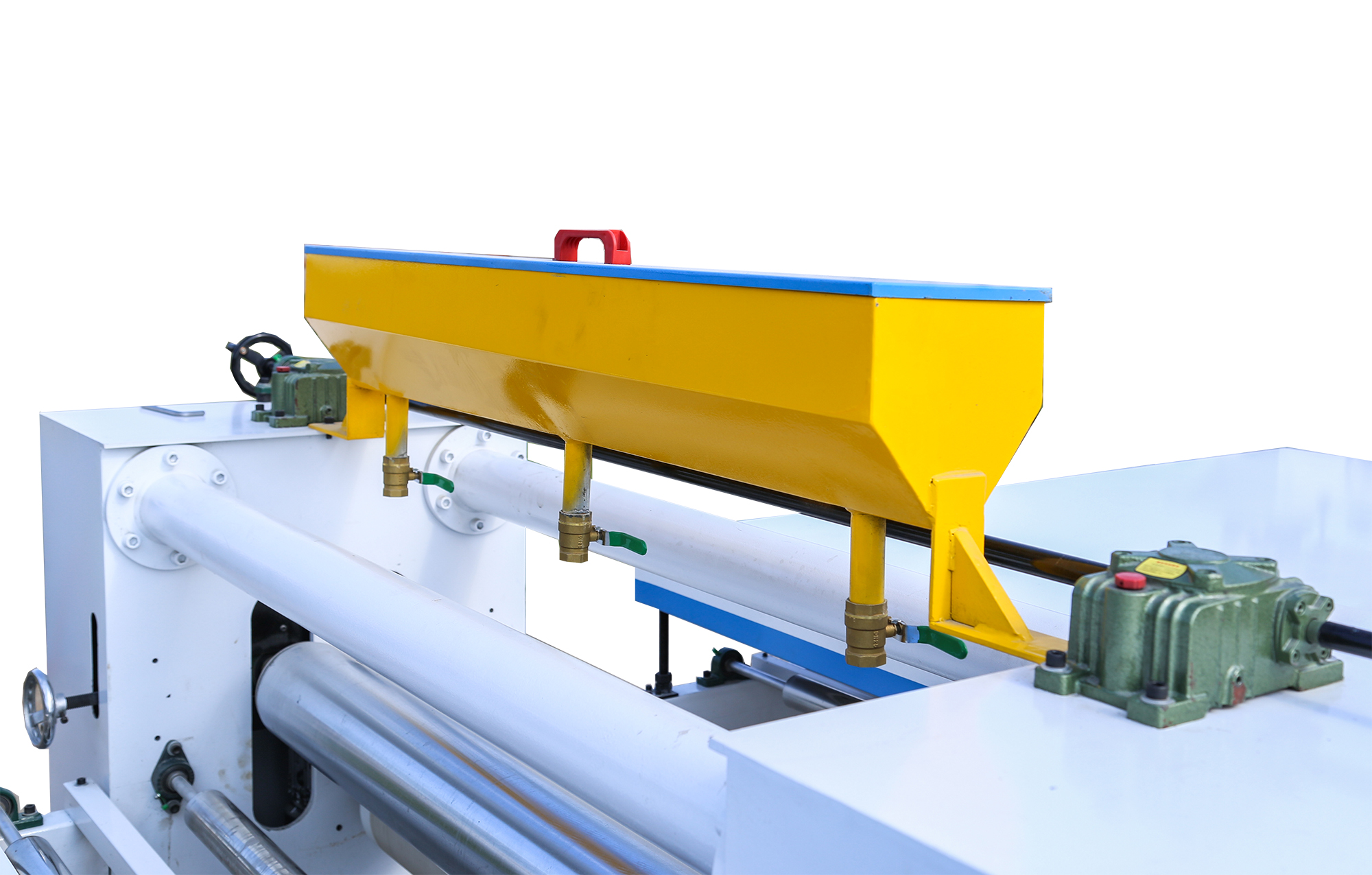

Glue coating roller:φ190x1350mm( silicone )
Heating steel Pressing roller:φ190x1350mmx1PCS
Rubber pressing roller:φ190x1850mmx2PCS
Max processing thickness:50mm
Max.work width:1350mm
working speed:1-15m/min
Technical parameters

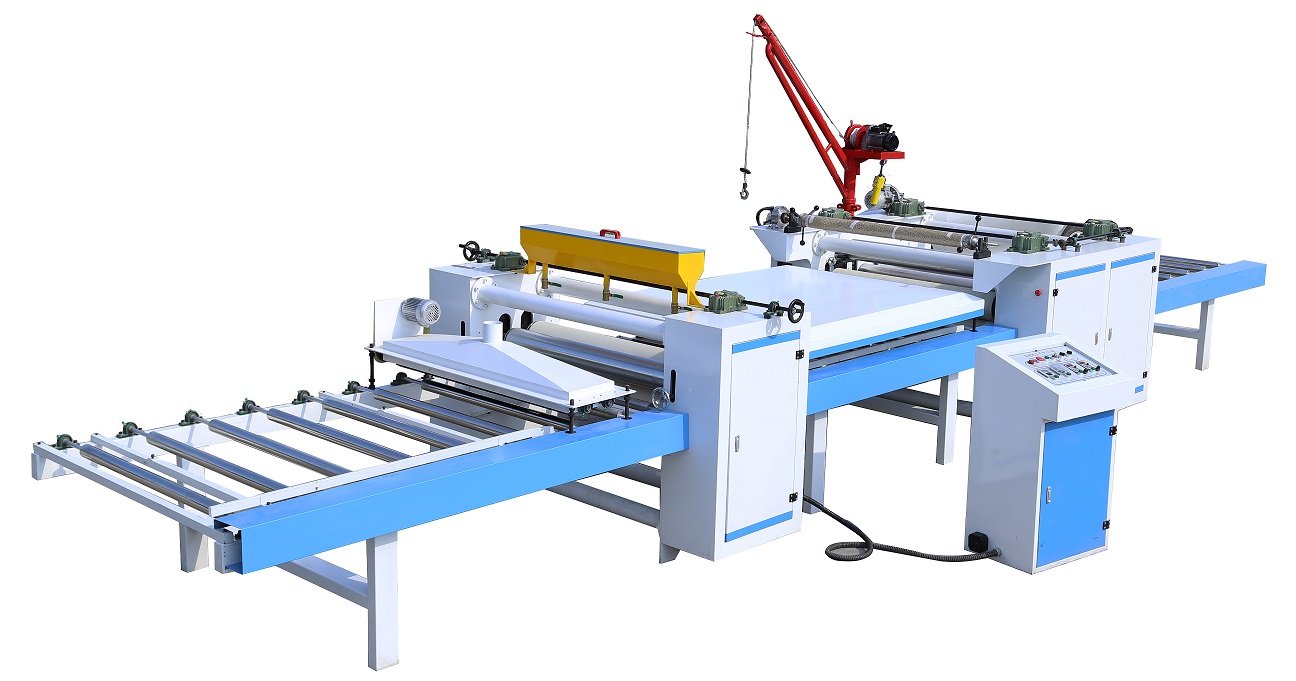

Paper and PVC film lamianting machine
| Item | AS1350TZ-D |
| Pressing roller control | air cylinder(when change thickness of the panel,need to adjust the air cylinder one by one) |
| Main body of the machine | Made by 16mm steel plate |
| Voltage | 380V/50HZ |
| Rated power | 18KW |
| Glue coating roller | φ190x1350mm( silicone ) |
| Heating steel Pressing roller | φ190x1350mmx2PCS |
| Rubber pressing roller | φ190x1350mmx2PCS |
| Max processing thickness | 50mm |
| Max.work width | 1350mm |
| working speed | 1-15m/min |
| Overall dimensions | 9600*2300*1600mm |
| Machine weight | 2600kgs |
| Delivery time | Within25 working days |
| Terms of payment | 50%deposit, paid off the balance before delivery. |
Engaged in prodcution and sell woodworking machinery
