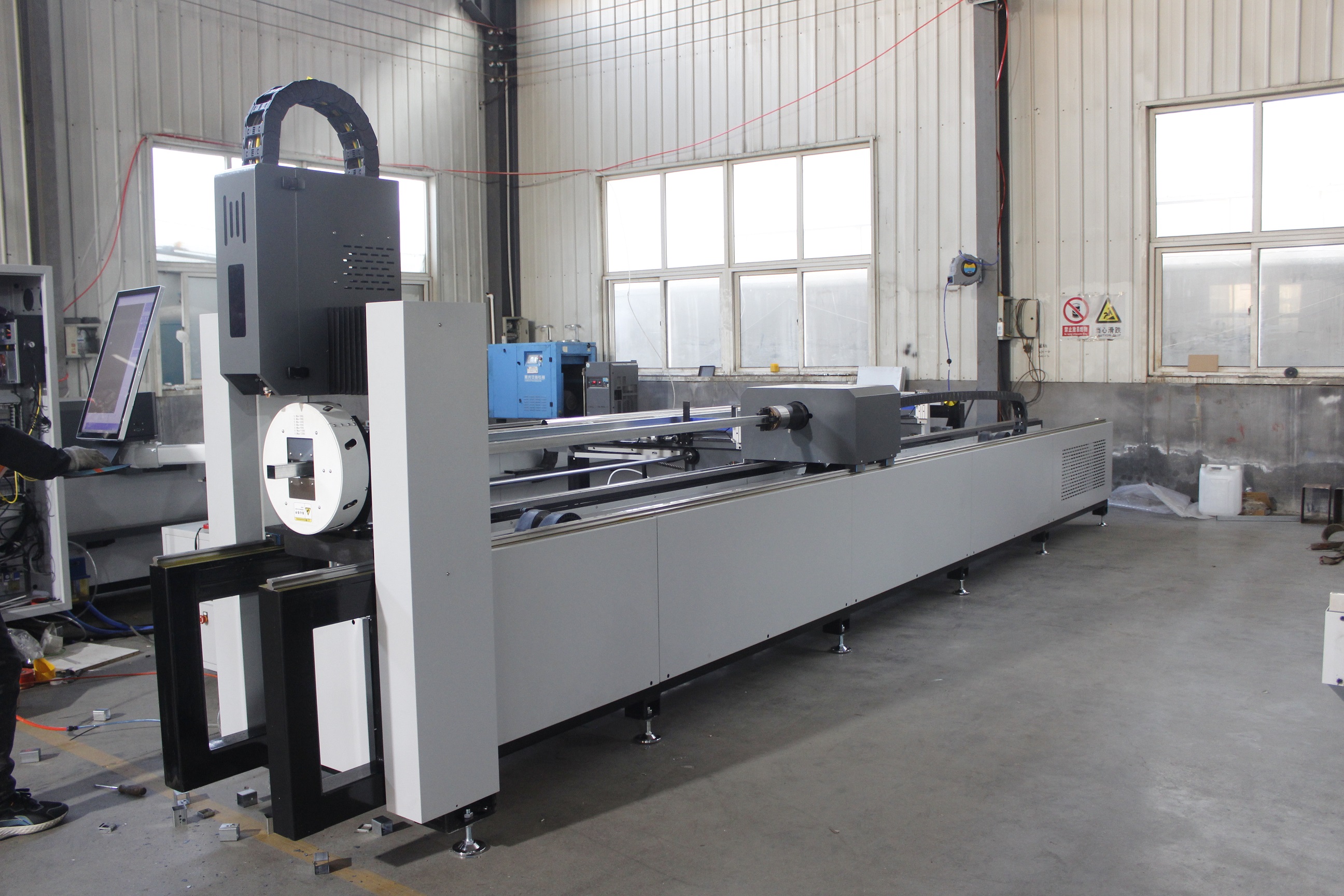

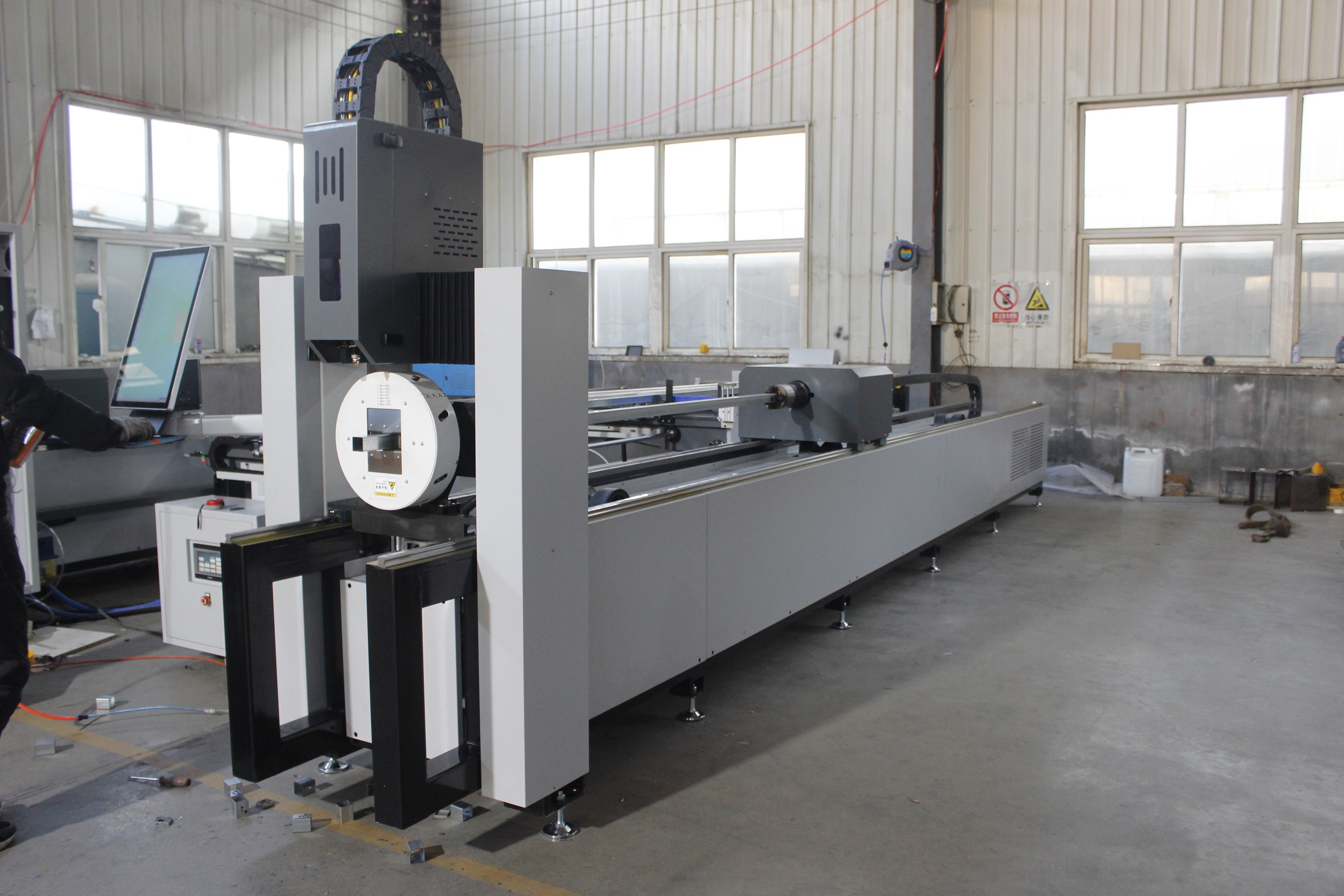

China AS-G6012 1500W 120mm tube laser cutting machine manufacturers
Fiber laser: MAX 1500W fiber
Laser head: Raytools / OSPRI laser head
Bed structure: Tube/Plate welding bed
XY rack and pinion: Taiwan HWN
Z-axis ball screw: Taiwan(TBI)
Servo motor: 750W Leadshine Servo
Reducer: Japan Shimpo
Chiller: Water chiller
Software: Shanghai fangling Fiber cutting software
Warranty: Whole machine for 2 years(Laser source 1 year )
Cutting range: 15-110mm
|
Technical Parameters
|
|
|
Machine Model
|
AS-G6012
|
|
Working Area
|
Round tube: φ10-120mm Square tube: □10-120mm 6m length
|
|
Laser Power
|
1.5KW-6KW
|
|
Dimension
|
9600*3050*2200mmm
|
|
Weight
|
3000KG
|
|
Loading configuration
|
Standard configuration: Automatic loading
|
|
Maximum Idle Running Speed(m/min)
|
100m/min-120m/min
|
|
Maximum idle acceleration(G)
|
1.5G
|
|
X/Y axis positioning accuracy/mm
|
±0.05mm
|
|
Repeat positioning accuracy/mm
|
±0.03mm
|
|
Cutting accuracy/mm
|
≤0.1mm
|
|
Working Voltage
|
380V，three-phase /50Hz-60Hz
|
|
Supported image formats
|
LXD/.DXF/.PLT/.AI/.Gerber/.DWG
|
