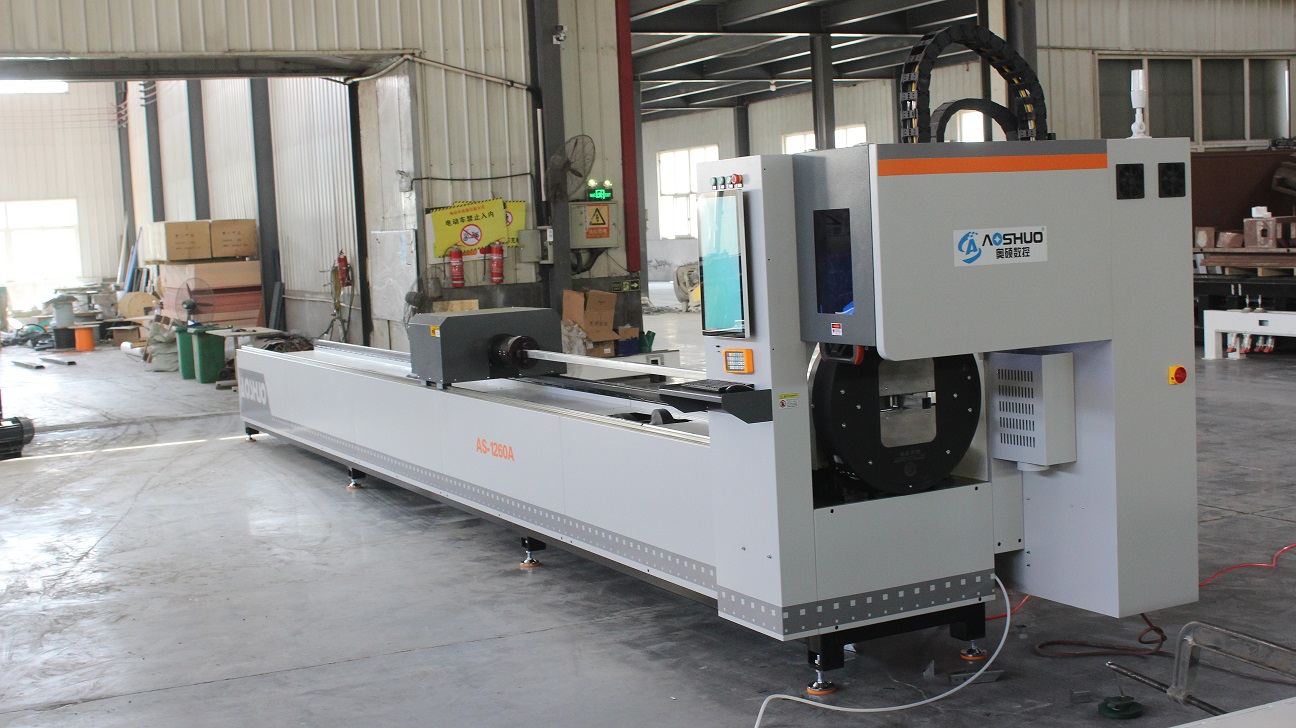

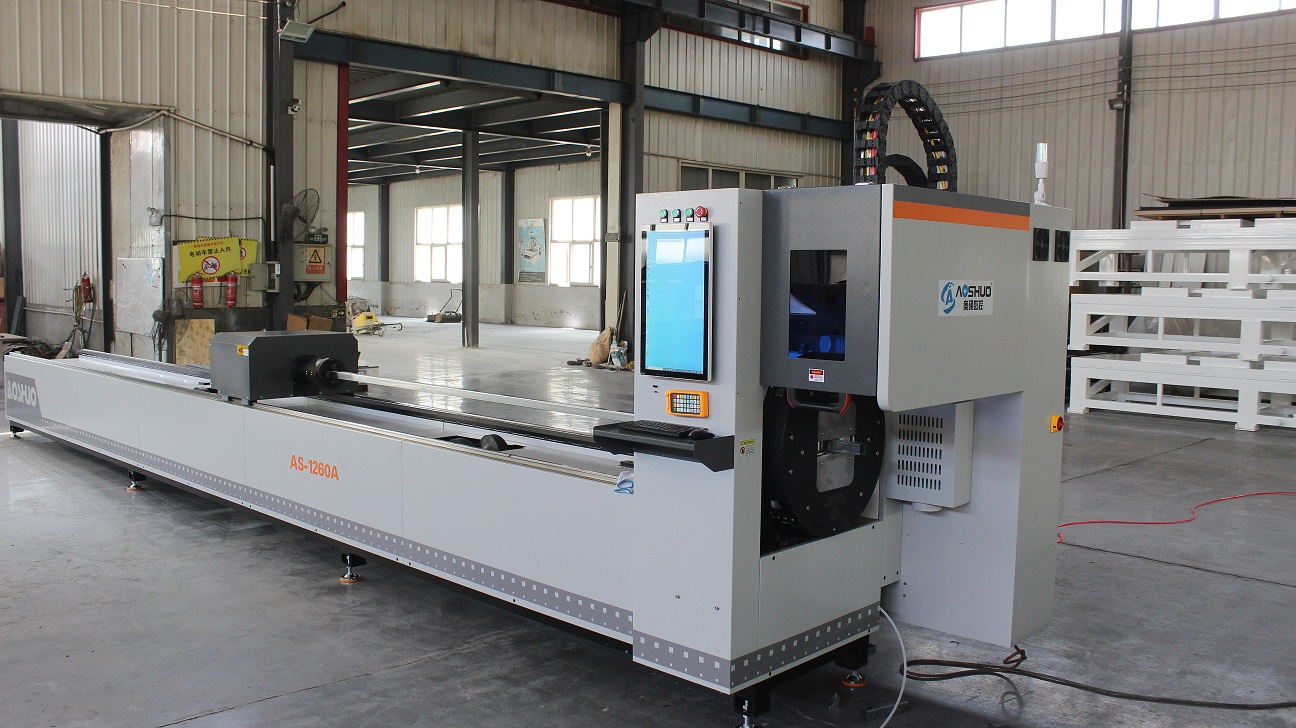

Automatic H/I/C Beam 3KW/6KW Laser Tube Cutting Machine for Steel Metal Made in China


Automatic H/I/C Beam 3KW/6KW Laser Tube Cutting Machine for Steel Metal Made in China

Applicable Materials Stainless steel, carbon steel, copper, aluminum etc.

Materials Thickness 0.3-22 mm

Laser Power 2000w

Pipe cuttign length ≤6000mm

Pipe clamp range 30-155 mm

Laser line width 0.15 mm

Re-location precision ±0.04mm

Machine Features: 1. High-performance laser device associated with stable operation system enables optimal cutting effects. 2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine. 3. Mobile front chuck achieves extremely short tailings, cut costs. 4. Automatic height-adjustment performance keeps constant focal length and stable cutting quality. 5. It could ut mental in various materials and realize excellent and stable cutting effects. 6. Automatic feeding system can realize automatic conveying, cutting, loading and unloading.
Specification
Model
AS-G6024
Laser Power
3000w
Machine Size
9800*2200*2400mm
Machine Weight
4500kg
Feeding System
Semi-Automatic feeding
Cooling System
Water cooling
Cutting Accuracy
0.2mm
Max.Acceleration Speed
1.5g
Processing Round Tube Diameter
Φ12-220mm
Processing Square Tube Diameter
▢15*15-220*220mm
Single Pipe Load-Bearing
15okg
After-Sales Service
Engineers available to service machinery overseas
Metal cutting, locomotive manufacturing, machinery industry, household appliance manufacturing, hardware tool processing, decorative advertising and other machinery manufacturing and processing industries
